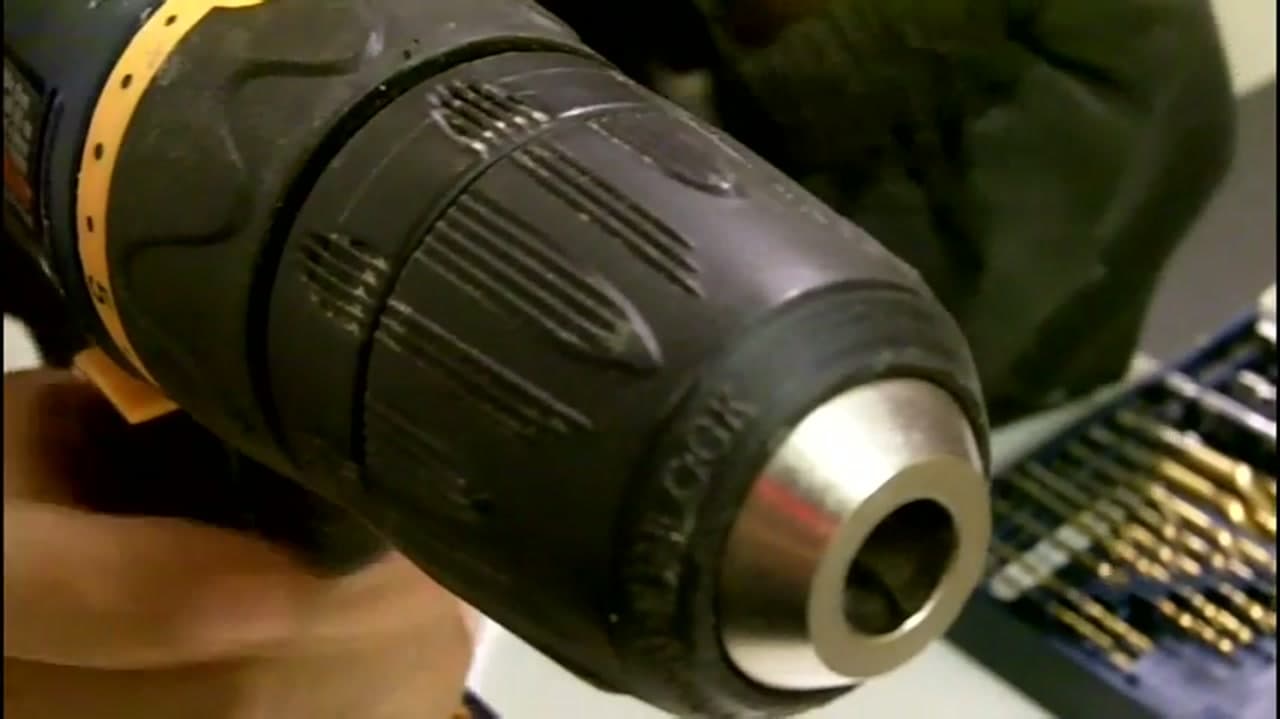

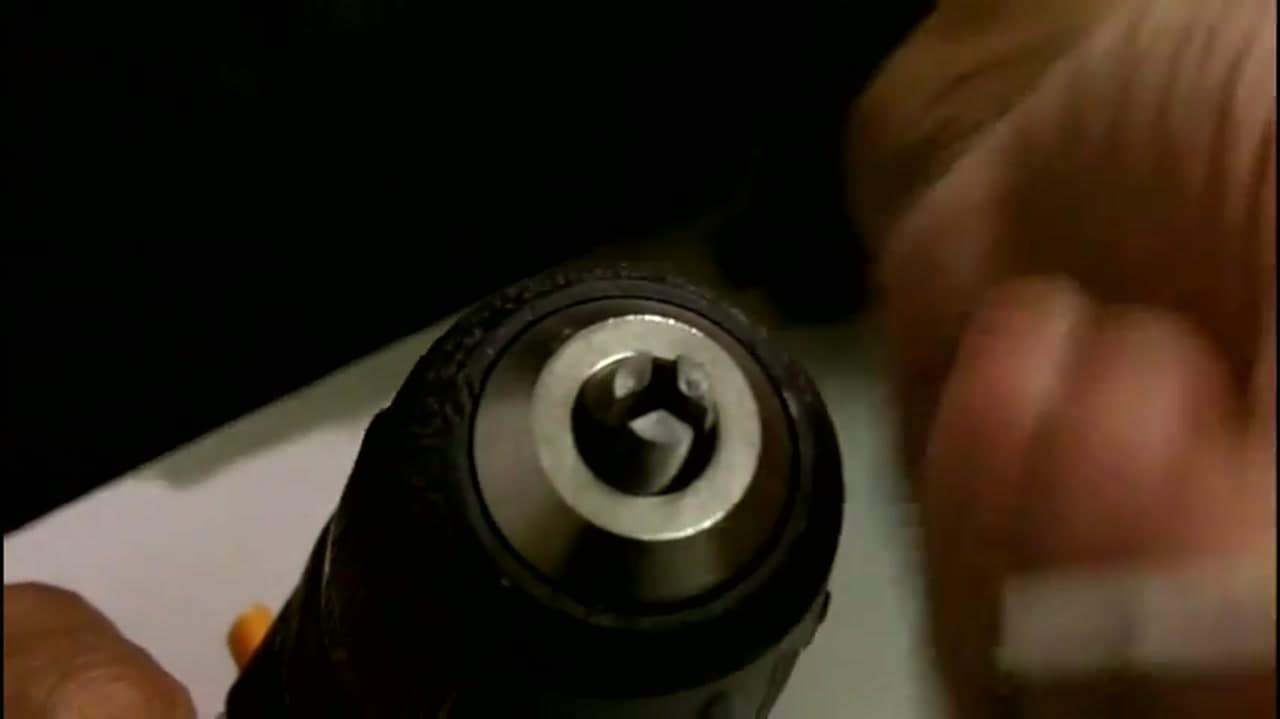

If one power tool belongs in every home, it's a drill. You'll use it to hang a picture, fix a wobbly chair, mount a curtain rod, build a shelf, or put together flat-pack furniture without stripping a screw. The first time you pick one up, the chuck, the direction button and the clutch numbers look like a puzzle. They're not. A drill is four parts working together, and once you can name them, the tool makes sense.

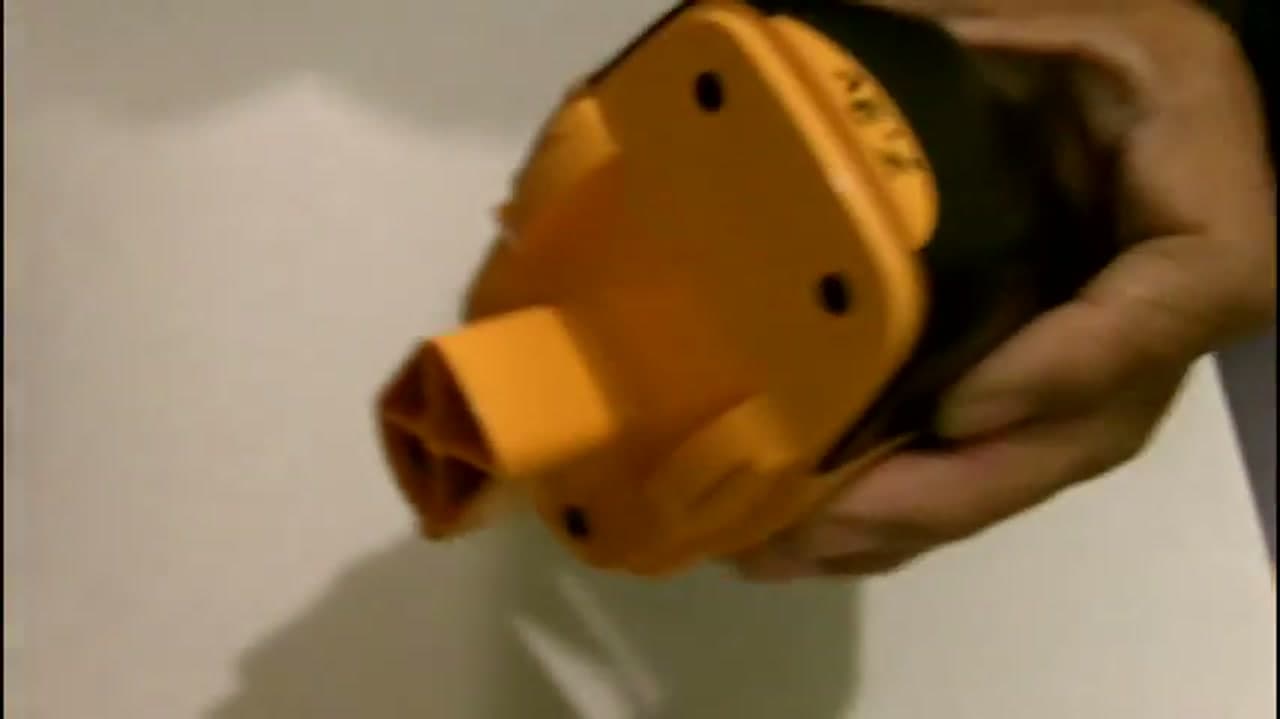

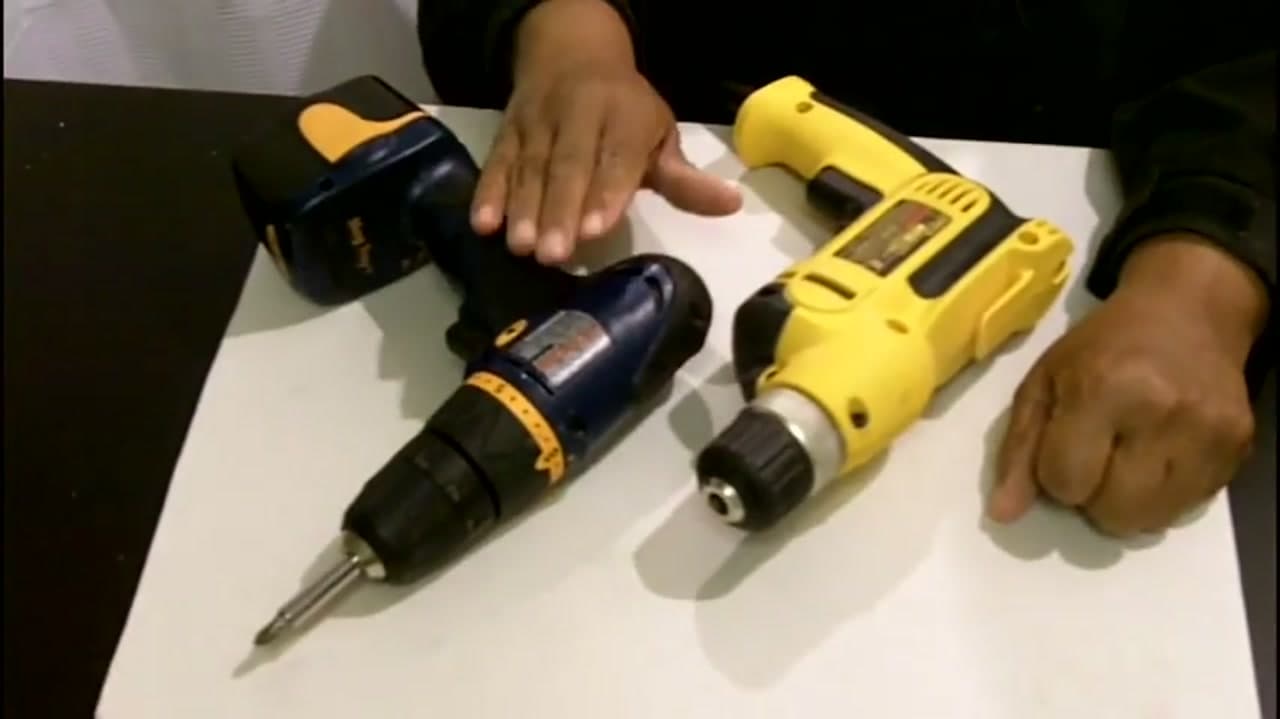

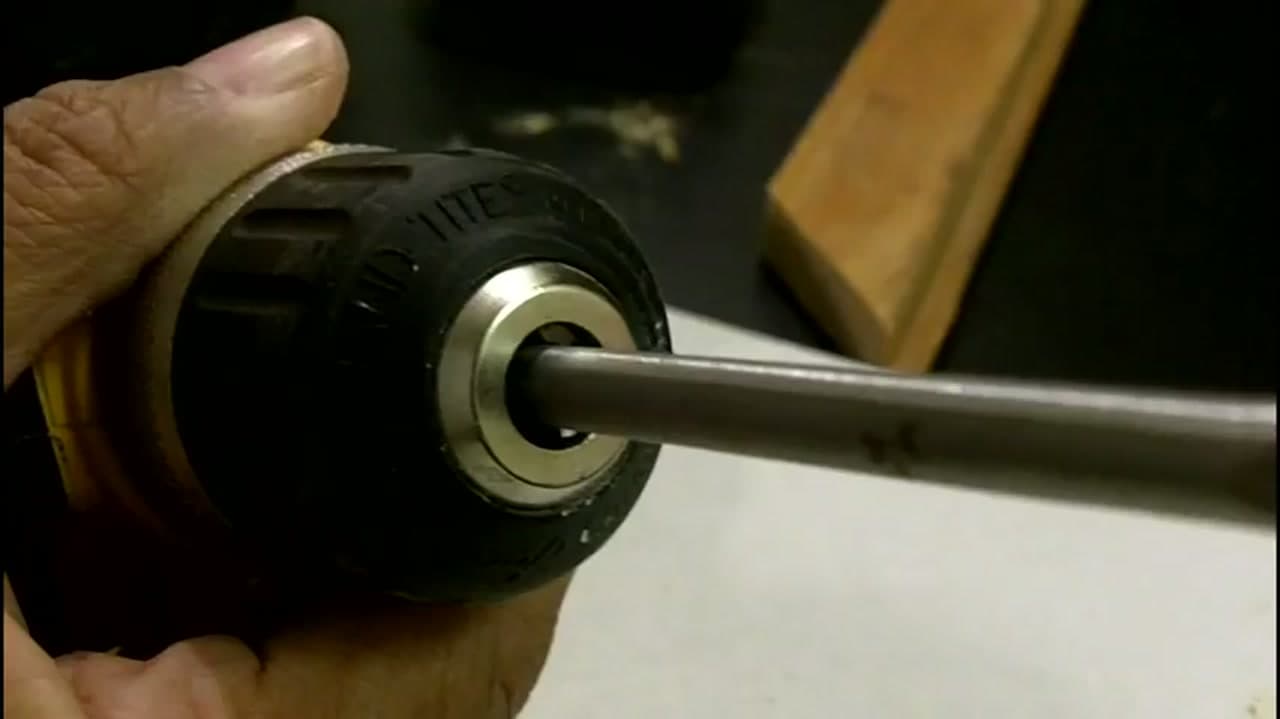

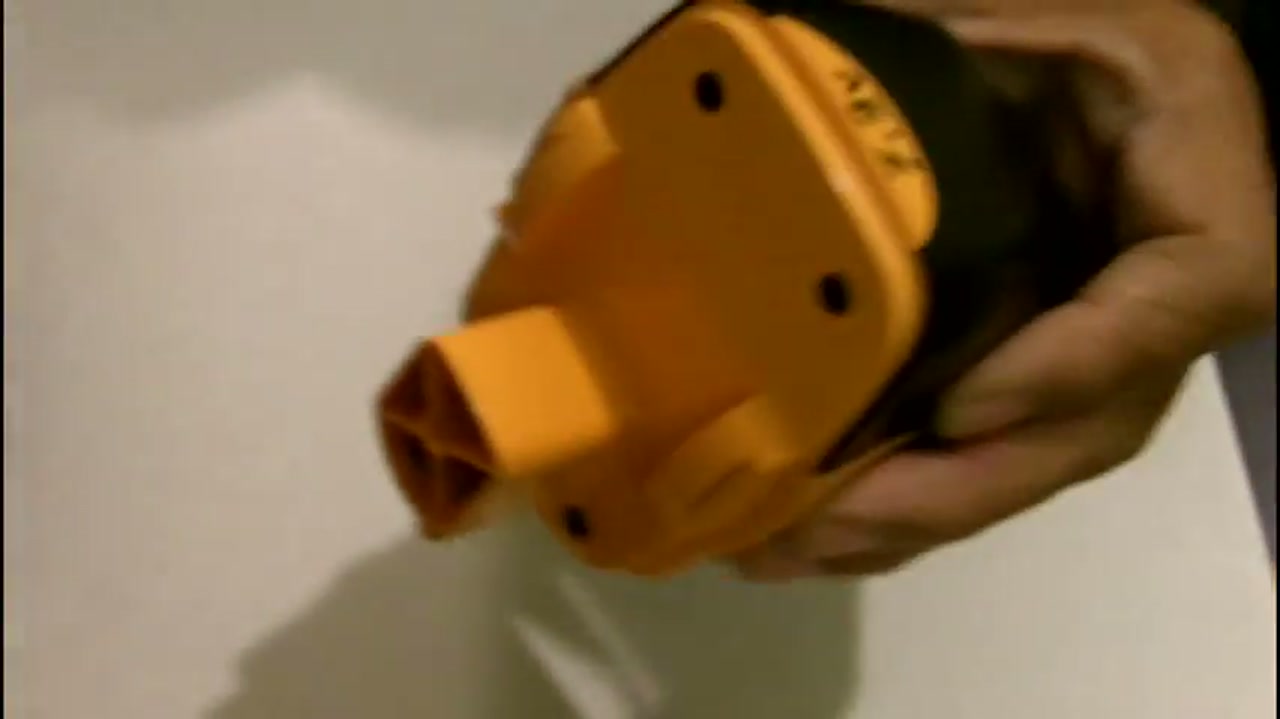

This walkthrough is built from Leah Bolden's See Jane Drill beginner video. She shows both styles - the cordless battery drill you'll grab most of the time, and the heavier corded drill for big jobs. When you're comfortable here, move on to a circular saw for straight cuts, or a router when you want shaped edges.
Drill or impact driver?
A drill spins smoothly, which is what you want for clean holes and for screws that need a light touch. An impact driver looks similar but hammers in short rotational bursts. It sinks long screws with almost no effort and only takes 1/4-inch hex-shank bits. Own one tool? Make it the drill. It drills and drives. The impact driver is the second purchase.
The clutch numbers and drill mode

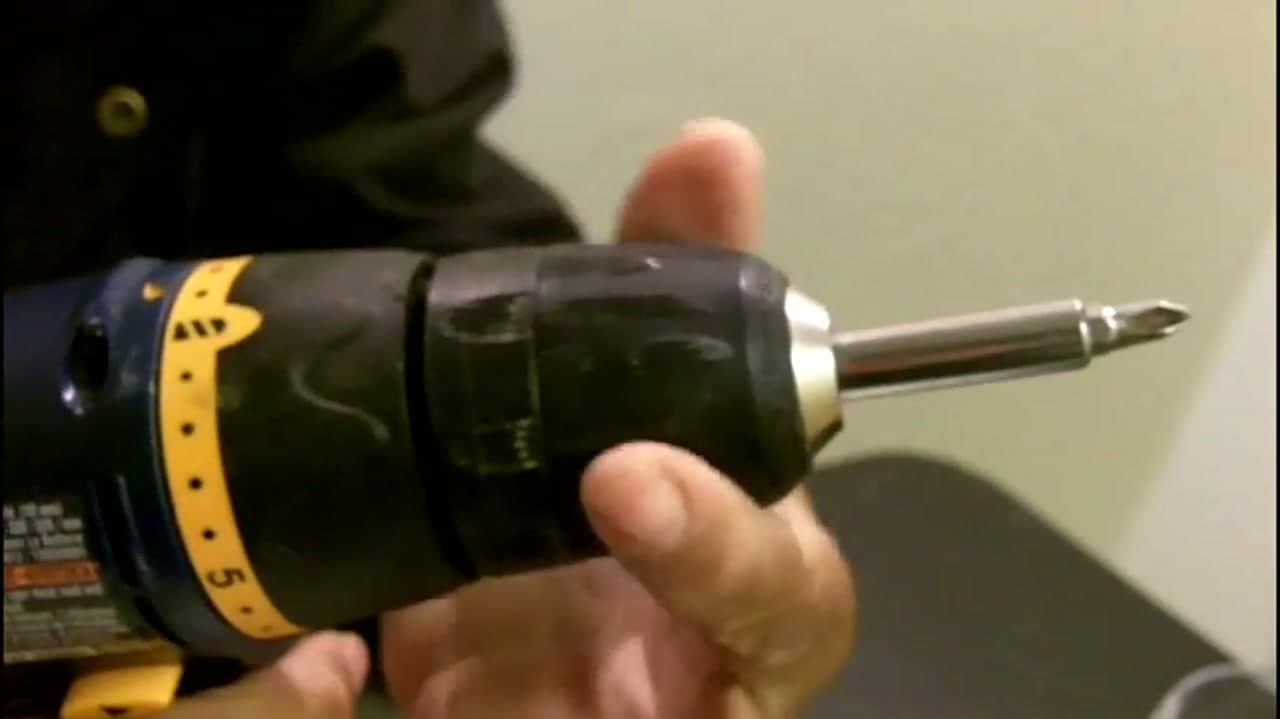

The numbered ring behind the chuck is the clutch. It sets how much twisting force the drill delivers before it slips with a clicking sound. Low numbers stop early, so a small screw doesn't sink too deep or snap. Start low when driving screws and turn it up a click at a time until the head sits flush.
The drill-bit icon at the end of the ring bypasses the clutch. Use it for holes. A hammer icon means hammer mode, which is for masonry only.
Which bit for which material
| Bit | Use it for |
|---|
| Twist | General holes in wood, plastic and thin metal |
| Brad-point | Clean, exact holes in wood |

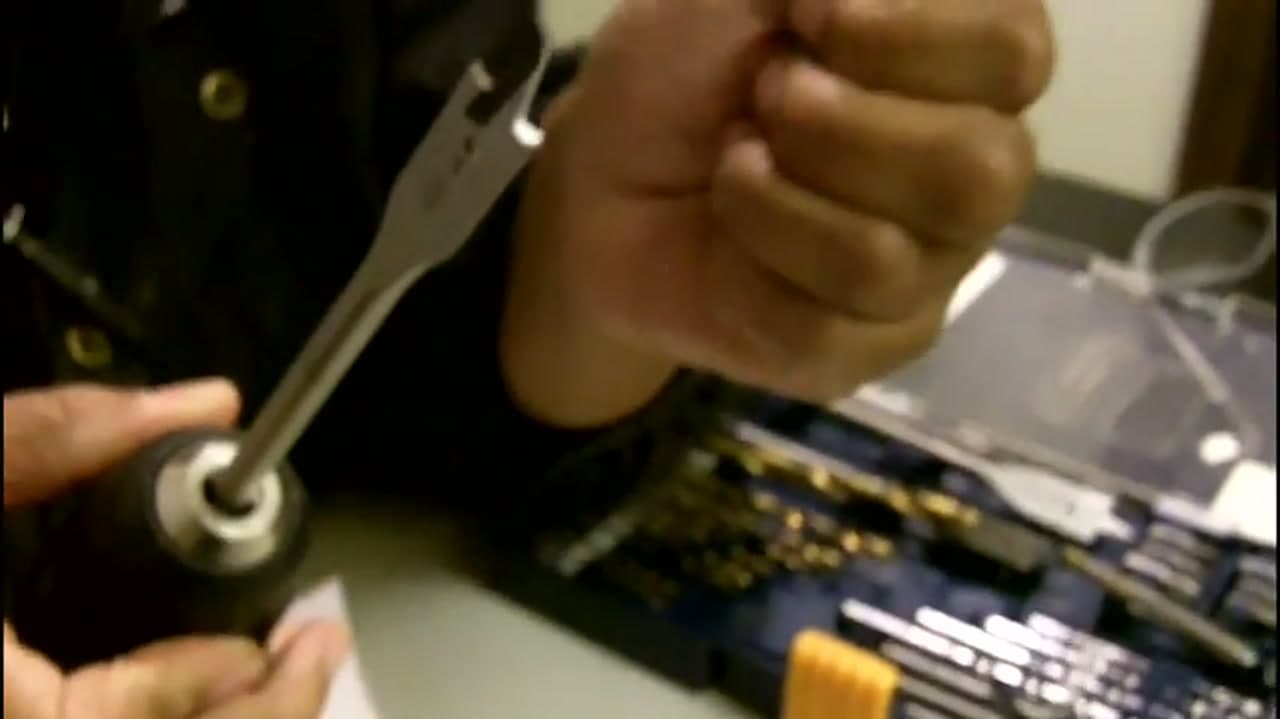

| Spade | Fast, rough wood holes from 1/2 inch up |
| Masonry | Brick, block and concrete |
| Hole saw | Big round holes, like a doorknob bore |
Pilot holes and why wood splits
A screw pushes wood fibers apart as it goes in. Near the end of a board, or in hardwood, they have nowhere to go and the board cracks. A pilot hole clears the way. Match the bit to the solid core of the screw, not the threads: hold the bit in front of the screw and you should still see threads on both sides. Oak and maple always get a pilot.
Drilling straight, and other materials

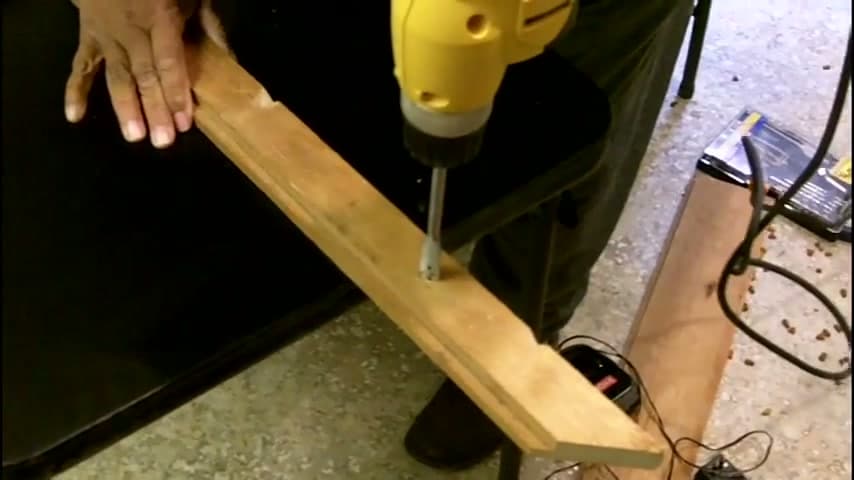

Judging 90 degrees by eye is hard. Stand a speed square or a square scrap block beside the bit and line the drill up with its edge. Clamp a scrap board behind the work so the bit exits into wood instead of splintering the back face.
- Tile: an X of masking tape over the mark, a tile bit, slow speed, no hammer mode.
- Masonry: masonry bit, hammer mode, back out often to clear the dust.
- Metal: center-punch the mark, run slow, add a drop of oil.
Drill safety
Safety glasses, every time. Clamp small pieces instead of holding them; if a bit catches, a loose part spins with it. No loose gloves, sleeves or long hair near a spinning bit. Hold big spade bits and hole saws with both hands, because when they bind the drill body twists hard.
Common drill mistakes
- Wrong direction. The bit squeals but goes nowhere. Check the direction button.
- Bit walking. The tip skates off the mark. Dimple it with an awl and start slow.
- Too much pressure. It stalls the motor, overheats the bit and leaves a ragged hole.
Ready for angled cuts? The miter saw guide is next.
